A full-wrap
beer can label
measures approximately
8.125 inches wide
by
3.625 inches tall.
The optimal wrap area drops to
7.5 inches wide
at the same height for improved printing and seam alignment. These specifications apply to
211-diameter cans — the U.S. industry standard for
12 oz aluminum beer cans.
From the compact 8 oz slim can to the oversized 32 oz crowler, every format has precise label specs that affect material cost, applicator compatibility, shelf appeal, and TTB compliance.

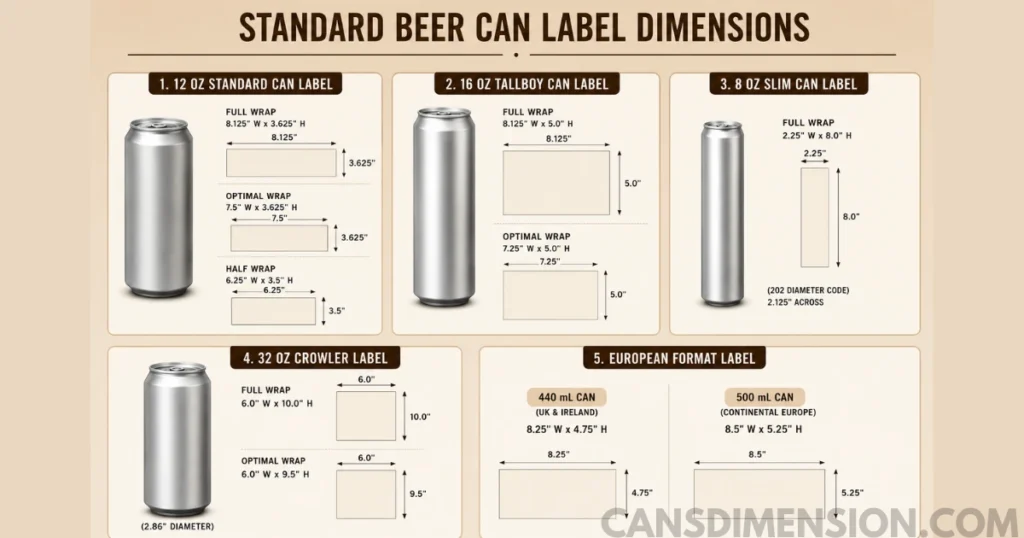

Beer Can Label Dimensions Chart
Can Size
Wrap Type
Width (in)
Height (in)
12 oz Standard
Full Wrap
8.125
3.625
12 oz Standard
Optimal Wrap
7.500
3.625
12 oz Standard
Half Wrap
6.250
3.500
16 oz Tallboy
Full Wrap
8.125
5.000
16 oz Tallboy
Optimal Wrap
7.250
5.000
16 oz Tallboy
Half Wrap
6.250
5.000
8 oz Slim
Full Wrap
2.250
8.000
19.2 oz Stovepipe
Full Wrap
7.500
6.000
32 oz Crowler
Optimal Wrap
6.000
9.500
32 oz Crowler
Full Wrap
6.000
10.000
440 mL (UK/EU)
Full Wrap
8.250
4.750
500 mL (Europe)
Full Wrap
8.500
5.250
All measurements follow US canning industry standards. These two sizes — 12 oz and 16 oz full wrap — cover roughly 90% of all craft beer cans sold in the USA.
Not all beer can labels are the same. Each format has a specific purpose, a specific audience, and specific numbers that matter for print production and brand presentation.
12 oz Standard Can Label Dimensions (The Standard)
The full wrap label measures 8.125 inches wide by 3.625 inches tall. The optimal wrap drops to 7.5 inches wide at the same height. The half wrap runs 6.25 inches wide by 3.5 inches tall.
16 oz Tallboy Can Label Dimensions
The full wrap label measures 8.125 inches wide by 5.0 inches tall. The optimal wrap drops to 7.25 inches wide at the same height. The half wrap runs 6.25 inches wide by 5.0 inches tall.The 16 oz tallboy shares the exact same 211 diameter as the 12 oz — same 2.6875-inch body width.
8 oz Slim Can Label Dimensions
The full wrap label measures approximately 2.25 inches wide by 8.0 inches tall — running tall and narrow rather than wide.These cans use a 202 diameter code — just 2.125 inches across — compared to the 2.6875-inch 211 body of the standard format.
32 oz Crowler Label Dimensions
The optimal wrap label measures 6.0 inches wide by 9.5 inches tall. The full wrap version runs 6.0 inches wide by 10.0 inches tall.The 6.0-inch label width is notably narrower than standard 12 oz and 16 oz formats despite the larger can size — because the crowler’s 2.86-inch diameter is only slightly wider than a standard 211 can
European Format Label Dimensions
The 440 mL can label common in the UK and Ireland measuresapproximately 8.25 inches wide by 4.75 inches tall. The 500 mL standard across continental Europe measures approximately 8.5 inches wide by 5.25 inches tall.

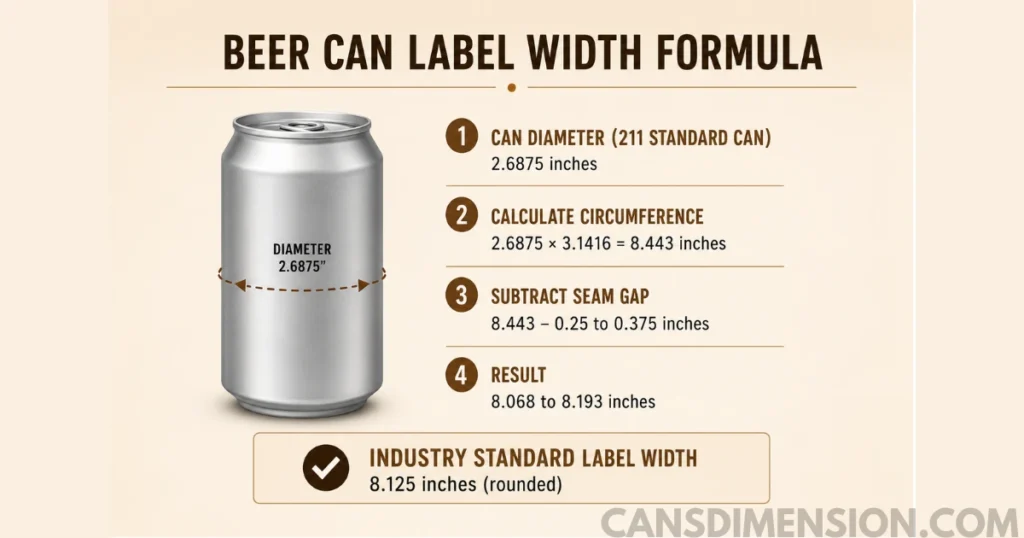

Label width is based on the circumference of the can body. The formula is straightforward — multiply the can diameter by pi (3.1416) to get total circumference, then subtract the gap allowance.
For a standard 211 can at 2.6875 inches diameter: 2.6875 × 3.1416 = 8.443 inches of total circumference. Subtract 0.25 to 0.375 inches for the seam gap. Result: 8.068 to 8.193 inches — rounded to the industry standard of 8.125 inches.
For label height: measure the straight body wall of the can from bottom curve to top curve, then subtract 0.25 inches from each end to create clean top and bottom margins. That final measurement is your safe label height.
Beer Can Label Dimensions vs. 211 vs. 207 Can Comparison
Spec
211 Can
207 Can
Diameter
2.6875 in
2.4375 in
Full Wrap Label Width
8.125 in
~7.65 in
Body Profile
Shorter, wider
Taller, narrower
Volume
Same
Same
Both cans hold the same volume — but the 207 is narrower and taller. Printing 8.125-inch labels and applying them to 207 cans creates excessive overlap or a visibly bunched seam that looks like a production error on shelf. Always ask your can supplier for the diameter code before finalizing label artwork. It is one question that saves an entire print run.
Question’s
What are the standard dimensions of a 12 oz beer can label?
The standard full wrap label for a 12 oz beer can measures 8.125 inches wide by 3.625 inches tall. The optimal wrap drops to 7.5 inches wide at the same height. These specs apply to all 211-diameter cans — the US industry standard for 12 oz aluminum beer cans.
What size label fits a 16 oz tallboy beer can?
The standard full wrap label for a 16 oz tallboy measures 8.125 inches wide by 5.0 inches tall — the same width as the 12 oz label because both cans share the same 211 diameter. Only the height increases to accommodate the taller can body.
How do I calculate beer can label size?
Multiply your can diameter by 3.1416 to get total circumference. Subtract 0.25 to 0.375 inches for the seam gap — that is your label width. For height, measure the straight body wall of the can and subtract 0.25 inches from each end for safe margins. Or wrap a strip of paper around the actual can and measure the overlap.
What is the difference between a full wrap and half wrap beer can label?
A full wrap label covers the entire can circumference at 8.125 inches wide — giving a 360-degree continuous design surface. A half wrap covers only the front panel at 6.25 inches wide. Full wraps cost more but maximize design space and eliminate alignment issues. Half wraps save material and suit short-run batches and taproom exclusives.
What is a 211 can and why does it matter for label sizing?
A 211 can is the US industry-standard aluminum beer can with a diameter of 2.6875 inches — 2 and 11/16 inches. This diameter is the base measurement for calculating all standard beer can label widths in the USA. The 211 code uses the same fractional Imperial system as all US beverage can specs — first digit in whole inches, next two digits in sixteenths.
What file specs does a beer can label need for professional printing?
Labels must be a minimum of 300 DPI at final print size — 600 DPI for fine detail work. Always work in CMYK color mode, not RGB. Send print-ready PDF files to your printer. Add 0.125 inches of bleed on all four sides beyond the final label dimensions and keep all critical content at least 0.25 inches inside every label edge as a safe zone.
What TTB compliance elements are required on a beer can label?
Every US beer label must include a GOVERNMENT WARNING statement in a minimum 2mm (6-point) font in all caps, declared alcohol content by volume, net contents, producer name and address, and country of origin for imported beer. California, Texas, and Florida all have supplemental state-level labeling requirements.
